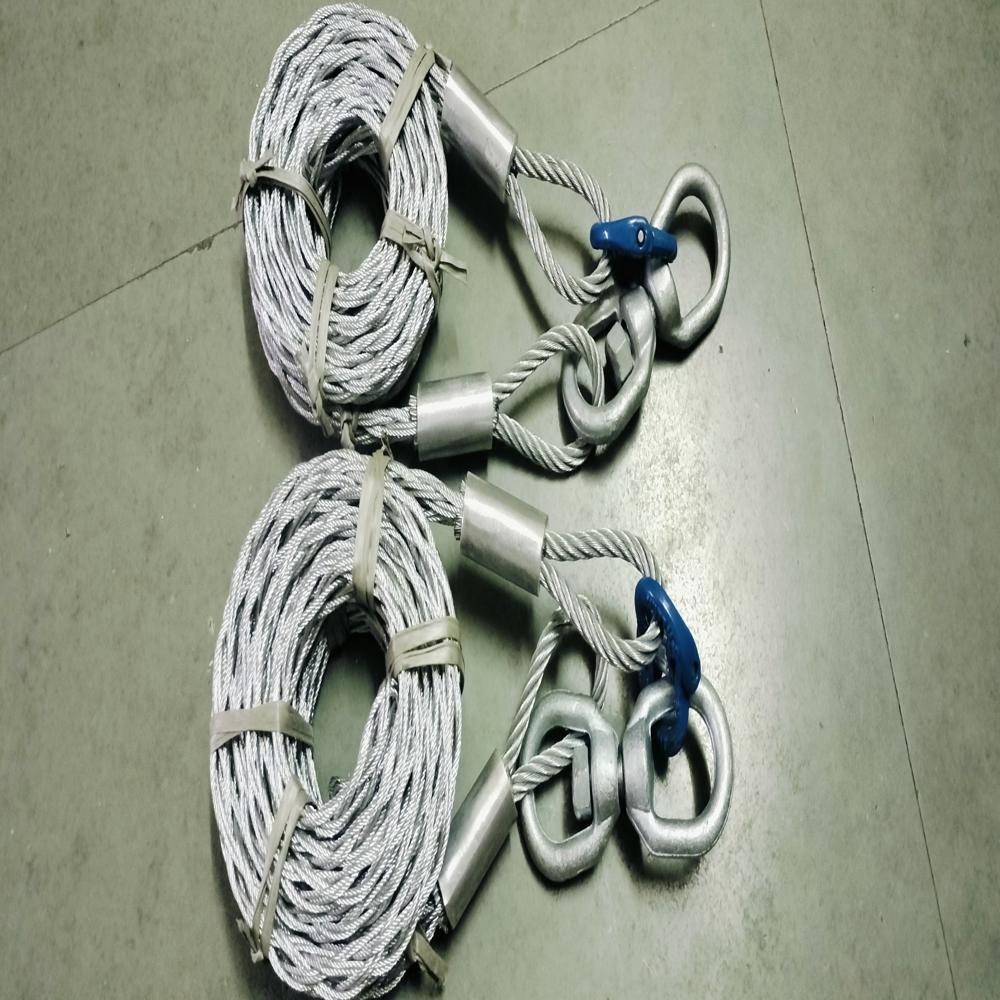

SINGLE AND DOUBLE END SNAKE GRIPS

Product Description

Model Snakes Range WL (lbs.) UTS (lbs.) Swing Link Eye-Eye Swivel LSG 1/4-1/2 1/4" - 1/2" 1,200 2,400 A - 5/16" A - 1/4 LSG 1/2-1 1/2" - 1" 2,500 5,000 A - 5/16 A - 1/4 LSG 1-1 1" - 1" 3,500 7,000 B - 7/16 B - 5/16 LSG 1-2 1" - 2" 4,000 8,000 C - 9/16 C - 3/8 LSG 2-2 2" - 2" 5,000 10,000 C - 9/16 C - 3/8 LSG 2-3 2" - 3" 5,000 10,000 C - 9/16 C - 3/8 LSG 3-4 3" - 4" 5,000 10,000 C - 9/16 C - 3/8 Single and double end snake grips are specialized tools used for pulling heavy-duty wire ropes and cables through conduits, trenches, or overhead routes. These grips are made of woven steel mesh that tightens around the cable as tension is applied, ensuring a firm and secure hold without damaging the cable jacket. Single-end snake grips feature a pulling eye on one end and are used when pulling a cable from one direction, ideal for standard cable installation. Double-end snake grips, also known as splice grips, have eyes at both ends and are used to join two cable ends for continuous pullingespecially useful in long-distance or directional drilling applications.
